Traxxas TRX-4 Aluminum Front C-Hubs + Knuckle Arms + Spindle Gear + CVD Shaft + Steering Link - 61Pc Set Green
$90.90 USD
- Made from quality light weight high tensile strength aluminum 6061T6 for greater support and durability. Positioning holes on C-hubs are inserted with Delrin collars to minimize friction between metals. Compared with original C-hub design, the bottom of this C-hub is reduced significantly to create more room under the body.

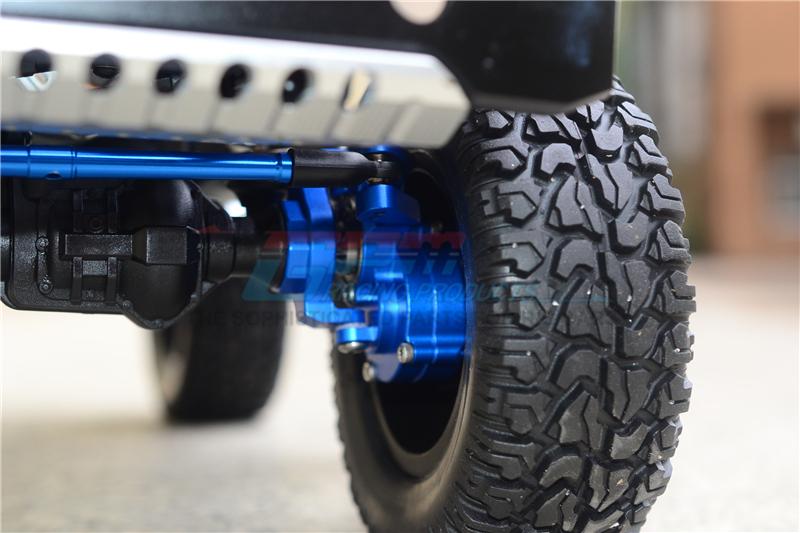

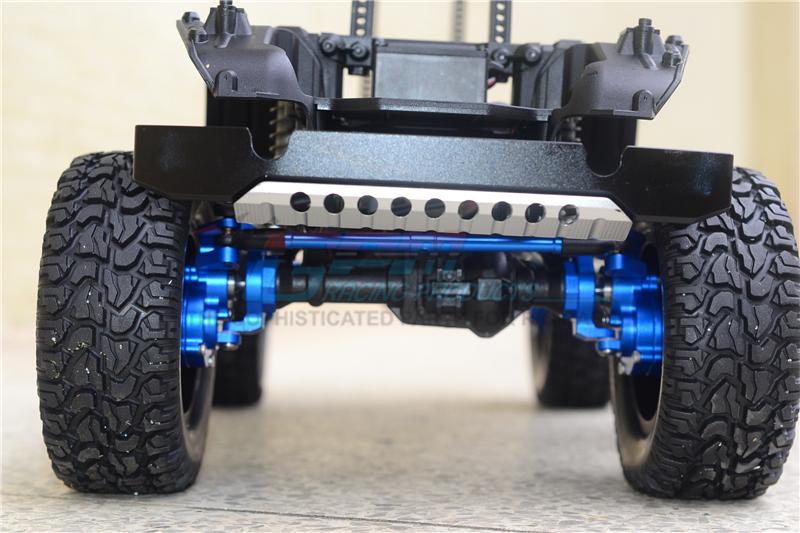

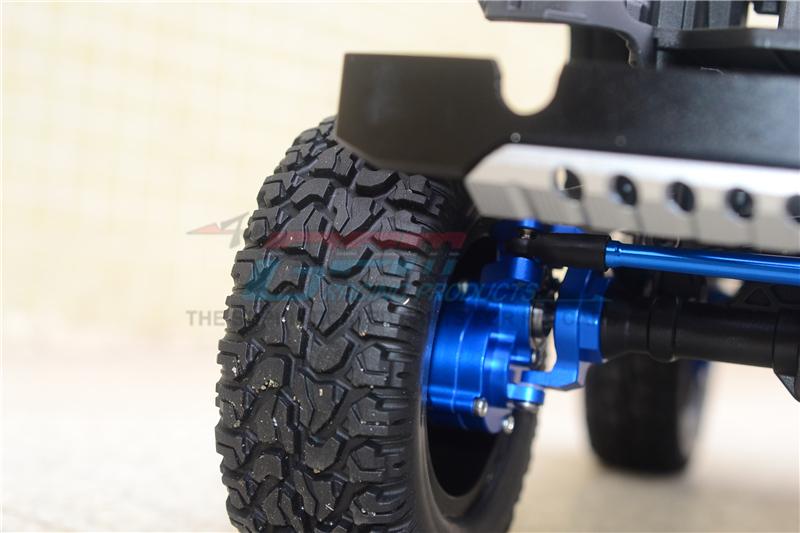

- The knuckle arm design is modified by increasing the internal gear, pitch, diameter, and lowering the center position of the axle to increase the body height by 1.2mm. This will enhance the overall performance of the vehicle. The position of dampers are modified after installing this combo. Original installation : the dampers sit in a vertical position. Modified installation : the dampers sit slightly outward which will improve stability of the vehicle and allows adjustment on the shock height.

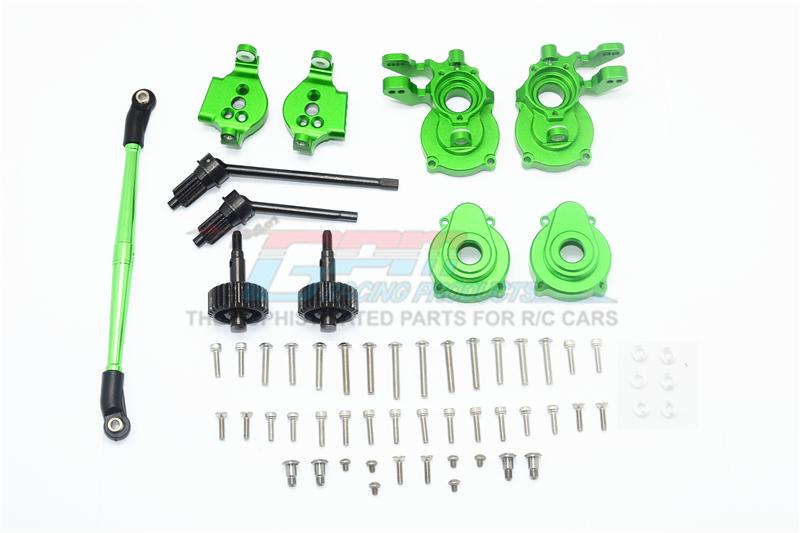

- Package includes : Front C-hub 2pcs ; Steering Tie Rod 1pc ; Aluminum Front Knuckles Inner Part 2pcs ; Aluminum Front Knuckle Outer Case 2pcs ; Front CVD 2pcs ; Spindle Gear 2pcs ; King Pin 4pcs ; Stainless Steel Flat Head Screw 2.5x10 6pcs ; Stainless Steel Round Head Screw 3x14 2pcs, 3x16 4pcs, 3x18 4pcs, 3x20 2pcs, 2.5x3 6pcs ; 3x6x2 Alloy Collar 6pcs ; Stainless Steel Cap Head Screws 2.5x8 4pcs, 2.5x10 12pcs.
- Original stock part number : 8232 + 8252 + 8246 + 8255A + 8258 + 8257 + 8228 + 8229.
- Suitable for all 1/10 Traxxas TRX-4 models.
